PACK EXPO International 2018 Product Review: ClearMark Thermal Inkjet Printer

ClearMark prints high quality text, graphics and barcodes onto almost any porous or non-porous substrate, providing the capability to add fixed and variable data, including serialized 2D data matrix barcodes, directly to primary or secondary packages or preprinted labels.

ID Technology, a ProMach product brand, introduced its new ClearMark thermal inkjet (TIJ) printer at Pack Expo International 2018.

Built around HP’s latest TIJ technology, ClearMark prints high quality text, graphics and barcodes onto almost any porous or non-porous substrate, providing the capability to add fixed and variable data, including serialized 2D data matrix barcodes, directly to primary or secondary packages or preprinted labels. This next-generation smart inkjet printer sets a new standard in ease-of-use.

ClearMark is ideal for customers packaging a wide variety of foods, beverages such as craft beers in bottles or cans, medical devices, pharmaceuticals, household chemicals and other products. ClearMark is especially valuable on production lines that operate at lower volumes, run sporadically or change over frequently. Simply replace the cartridge and instantly print the next color or type of ink.

New inks have recently been developed that enable TIJ technology to satisfy a broader range of applications. Inks formulated to print on almost any porous or non-porous material are now available from ID Technology in many different colors, including UV-visible and UV-curable inks.

ClearMark is ushering in the next generation of inkjet technology with its smart printhead that eases set-up and operation. Messages and parameters are saved to the printhead’s on-board memory, enabling ClearMark to operate without being connected to an external controller. Settings associated with each ink are stored on the cartridge Smart Card and automatically retrieved so operators need not adjust those parameters during changeovers. When an ink cartridge is removed from the printer, the Smart Card records how much ink remains to minimize the possibility an operator will attempt to use an empty cartridge later or discard a cartridge with ink.

Users can interface with ClearMark via common function buttons found directly on the smart head as well as on the system’s large 10-inch (25-cm) color touchscreen. ID Technology’s intuitive new HMI features an uncluttered display with icon-based navigation to simplify programming and monitor system status. Additionally, ClearMark can share data via a USB pen drive and an Ethernet port that facilitates connection to a PC, PLC, plant-wide network or the cloud. This enables users to create and edit messages off the plant floor, automate changeovers, integrate with serialization systems and troubleshoot remotely.

ID Technology eases set-up with an intuitive message creation wizard that offers full WYSIWYG drag-and-drop functionality for both new compositions and editing. True Type fonts and unlimited fields for counters, time, date, barcodes, logos and graphics are available. ClearMark’s HMI also provides live feedback on count values, prints remaining in the cartridge, line speed and production rate.

For customers that require the highest print quality, ClearMark can be set to achieve a resolution of up to 600 dpi. If set to print 300 dpi, ClearMark typically maintains speeds of 200 feet per minute (61 m/min) and can reach higher speeds when printing at lower resolutions. It offers a print height of 1/2 inch (12.5 mm) and unlimited print length.

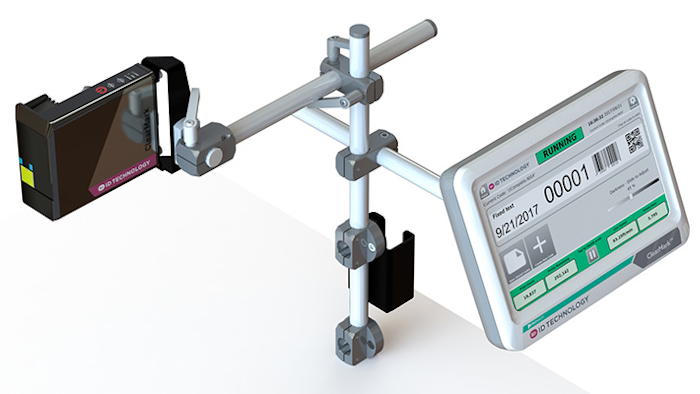

ClearMark is simple to install, with standard mounting hardware made of round tubular metal with multiple points of adjustments that enable it to fit perfectly onto virtually any new or existing packaging line. Unlike mounting hardware made of square tubing that’s locked into 90 degree increments, ClearMark’s mounting hardware swivels into a wider variety of positions.

Pharmaceutical manufacturers and contract packers that need track-and-trace solutions can use ClearMark to serialize and aggregate.  Consistently printing high density 2D data matrix bar codes onto a wide variety of packaging substrates, along with easy integration with upstream and downstream systems as well as plant-wide and cloud-based networks, ClearMark will print serialized code onto primary packages, secondary packages and pre-printed labels.

ID Technology  www.idtechnology.com
