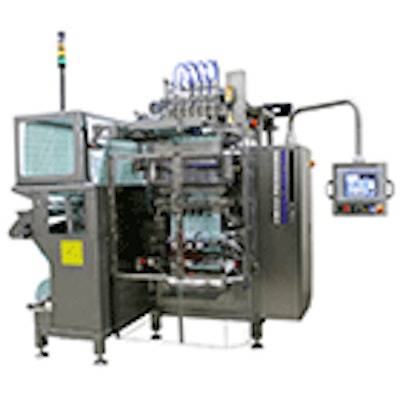

The Flexibag Si-500 offers a high performance, space saving, compact design for attractive 4-side-sealed sachets with a multitude of different contour sealing possibilities and easy opening devices. Programmable sealing parameters (time, pressure and temperature) produce leak-free seals. The Allen-Bradley ControlLogix/CompactLogix PLC with OIT and Ethernet communication provides exceptional control of machine functions. The user-friendly touchscreen operator interface includes product information, alarms, warning messages, and production data. Up to 40 product records can be stored for retrieval through the PanelView Plus 6 1000 touchscreen operator interface. The electrical package includes CE / UL approved “touch-safe” components, and quick disconnect sensors and actuators. Features include a height-adjustable film roll mounting for easy roll loading, a servo driven film drive, film reels up to 800 mm in diameter, a PLC controlled web edge guiding system allowing for reliable film runs with all packaging materials, and an optional integrated printing system. The Circle Flexibag Si-500 is designed to package thin to viscous liquids, pastes, powders or granulated products. Speeds up to 1400 packages per minute can be achieved depending on package size and packaging material to be used. Note: The Si-500 model accommodates web widths of 500 mm, and the optional Si-600 model accommodates web widths up to 600 mm. Both Models are available in single film roll (front to back registration) or two film roll (single side registration) configurations.
