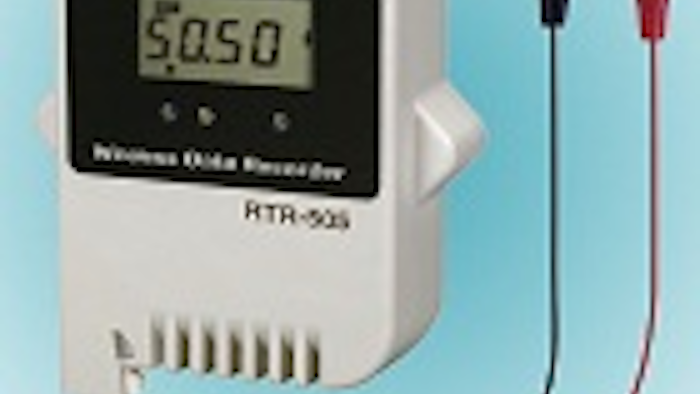

Wireless Pulse Counting Data Logger

Company’s wireless pulse counting data logger can record pulses from devices such as flow meters, anemometers or the opening and closing of switches from a variety of sensors.

title
title

Company’s wireless pulse counting data logger can record pulses from devices such as flow meters, anemometers or the opening and closing of switches from a variety of sensors. The logger can not only collect, monitor and record data via wireless communication, but can also manage data through networks, allowing construction of a data logging system to match the needs and environment of the user.

Each logger features:

  • A logging capacity of 16,000 data readings and a maximum count of 61,439 readings per recording Interval
  • An Input Signal that can be a non-voltage contact input or voltage input from 0 to 27 V
  • A detection voltage that can be Lo: 0.5 V or less or Hi: 2.5V or more
  • An input impedance that is Approx. 100 KΩ pull up

TandD Corporation, www.tandd.com
