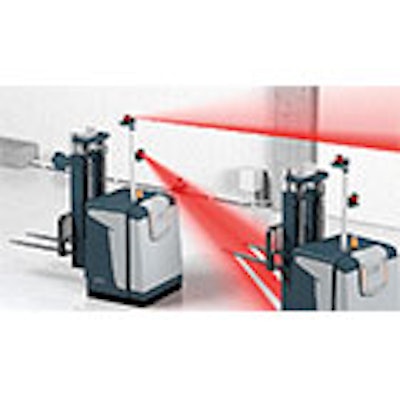

Pepperl+Fuchs introduces the R2000 Detection Laser Scanner. Smaller than most coffee mugs, these 2D laser scanners feature a 360-degree gapless measurement angle with angular resolution within 0.071 degrees, scan frequency to 30 Hz and object detection down to 1 mm. An eye-safe visible red laser simplifies alignment and, because the light spot is up to 15 times smaller than competitive technology, it enables precise detection of very small objects or reflectors. R2000 Detection Scanners can also detect objects up to 10 m away and reflectors up to 30 m away, with measurement repeatability that is always within 12 mm of true distance value. A 360 degree LED display provides quick visual status indication. High angular resolution and positioning accuracy combined with simple setup make R2000 Detection well-suited for use in material handling applications as well as building automation and transport management. In fact their innovative features provide significant advantages for use in many other areas, too, regardless of the industry. Potential applications include, but are not limited to, detecting protrusions or obstacles over large area, collision avoidance on overhead monorails, detecting small overhangs such as damaged pallets, monitoring entryways and exits, controlling the height of pallets on palletizers, and verifying empty, full, or overfilled cartons on conveyors.
Pepperl+Fuchs www.pepperl-fuchs.us
