IEC Motor Controls

The GH15 series of electric contactors now includes larger frame sizes. The new components are available in frame sizes from 79 mm to 145 mm, and models are available up to 315 Amps.

title
title

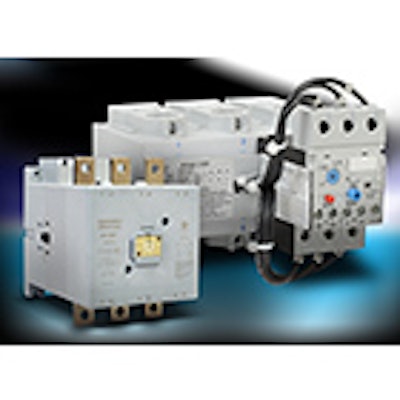

The GH15 series of electric contactors now includes larger frame sizes. The new components are available in frame sizes from 79 mm to 145 mm, and models are available up to 315 Amps. IEC motor controls feature self-lifting pressure plate terminals for quick wiring terminations. Actuator coils, in 110/220 V and 220/240 V, 60Hz models, accommodate most applications. Now available in IEC sizes ranging from B to TT, these contactors accommodate up to 250 Hp motors at 460 VAC. The devices are 35 mm DIN-rail mountable and panel mountable (larger sizes) to provide fast and easy installation. They are CE marked, cULus listed, RoHS and REACH compliant.


AutomationDirect, www.automationdirect.com
