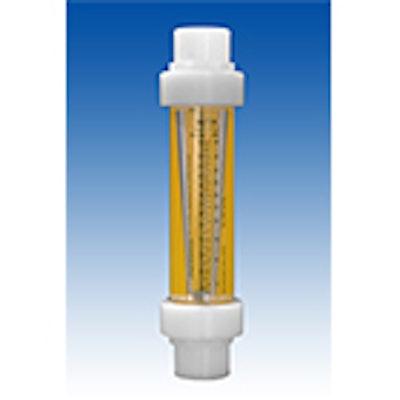

The 6A03 line of acrylic flow meters are offered with interchangeable direct reading scales for air, water, argon, oxygen, carbon dioxide, nitrogen, helium and hydrogen. Dual scales display flow rates in both metric and English units. Optional scales can be developed for diverse flow conditions, facilitating OEM applications. The unit's yellow-colored back plate enhances the readability of scales and minimizes eye fatigue. The product is supplied with "in-line 3/4" female NPT connections. Other product features include:
- Maximum Temperature: 130ºF/54ºC Maximum
- Maximum Pressure: 100 psi/6.89 Bar Maximum
- Accuracy: ±3% FS
- Float and Guide: 316 stainless steel
Dakota Instruments, Inc., www.DakotaInstruments.com
