Compact, Lightweight Drives

Series of compact, lightweight, low cost NEMA 4X-rated DC drives, designed to deliver longer life, better performance and higher corrosion resistance than competitive drives.

title
title

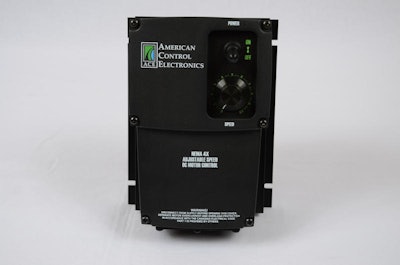

American Control Electronics (ACE) introduces the PAT 44X-10 Series of compact, lightweight, low cost NEMA 4X-rated DC drives, designed to deliver longer life, better performance and higher corrosion resistance than competitive drives. PAT Series drives accept 115 or 230VAC input for operation of 90 and 180VDC permanent magnet or shunt wound DC motors (50/100/200VDC field voltage) from 1/8 to 2 horsepower. The PAT Series has the same “bolt in” form factors as competitive drives to make changeover easy and cost effective.

The PAT Series includes: power and current limit LEDs, line fuses, inhibit pins for remote start/stop and mounted on the front cover are a speed potentiometer and On/Off switch. Setup is simple with trimmer pot adjustments for minimum speed, maximum speed, acceleration, deceleration, IR compensation and current limit and a screw terminal block for easy wire connections.

Key specifications of PAT44X-10 Series:
• Input Voltage: 115 VAC, 230 VAC
• Output Voltage: 90 VDC, 180 VDC
• HP Range: 1/8 to 2
• KW Range: .10 -.75, .20 -1.5
• Max Current: 10 amps
• UL Listed

American Control Electronics  www.americancontrolelectronics.com
