Barrier Glider High-Speed Door Designed for Cold Storage

Bi-parting, R-10 door ideal for temperature-sensitive operations.

Rite Hite

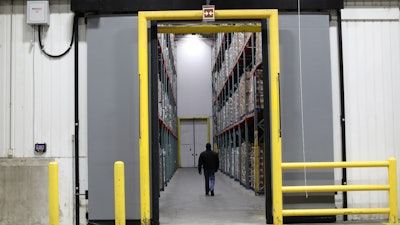

The Barrier Glider Cold Storage Door by Rite-Hite (Milwaukee, WI) is a high-speed, bi-parting door that is ideal for refrigerated warehouses, food manufacturing/processing plants and other facilities that require strict environmental control. Specifically:

  • The Barrier Glider Door features Rite-Hite’s patented Thermal-Flex Sealing System, which provides a heated perimeter sealing design.
  • Flexible Iso-Tek panels are 3 inches thick and rated R-10.
  • The trolley assembly is constructed of heavy gauge round tubing and uses hourglass-shaped rollers so the panel can rotate on the track for impactability (the ability to absorb a strike).
  • As a safety feature, the panels automatically reverse when they encounter an obstruction.
  • Safety is also enhanced (and heat transfer reduced) by the Barrier Glider’s fast operating speeds. Powered by a 1 HP AC motor, it moves at up to 80 inches per second when opening and 30 inches per second when closing.
  • Barrier Glider panels range in size from 6-foot by 8-foot up to 12-foot by 20-foot. They are available with optional 14-inch by 32-inch vision panels for increased visibility and safety.

The Barrier Glider comes standard with the Rite-Hite Graphic User Interface (GUI) door control panel. The industry’s only 7-inch LCD touchscreen interface displays real-time door status and allows workers to troubleshoot settings without personal protective equipment by eliminating arc flash., 800-456-0600
