lower-flow Twin Screw Pumps

The pump is capable of handling both product transfer and Cleaning in Place – and can move seamlessly between the two.

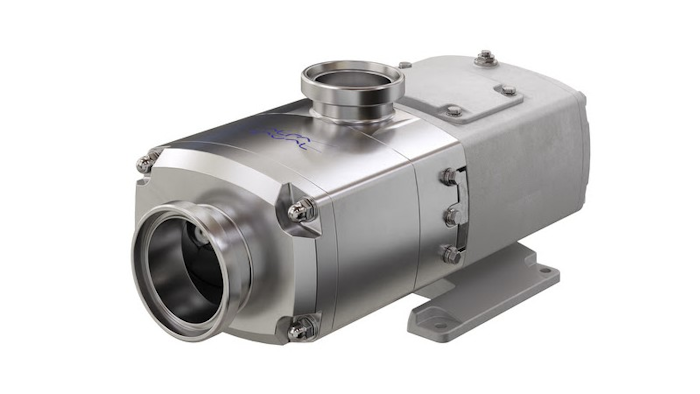

Unnamed (6)

The Alfa Laval Twin Screw Pump is designed for process flexibility and precision engineered based on decades of proven technology. The pump is capable of handling both product transfer and Cleaningin-Place (CIP) – and can move seamlessly between the two. Low pulsation characteristics and superior solids handling capability reduce the risk of product damage, thereby improving product quality. Superior suction performance provides installation flexibility and increases product recovery.

The pump, with its robust and reliable platform, meets the highest hygienic standards, simplifies maintenance and increases process uptime.

Process Flexibility

  • 2 in 1 Operation
    Ability to easily handle process media of varying viscosities as well as CIP fluids, simplifying piping and pump control, cutting costs and minimizing contamination risks.
  • Suction Performance
    Superior suction performance with excellent lift capability and low NPSHr provides installation flexibility and increases product recovery.
  • Product Quality
    Smooth and gentle in operation with low pulsation characteristic and excellent solids handling capability, reduces the potential for product damage. The Alfa Laval Twin Screw Pump A C B

Service & Reliability

Truly Front Loading Seal
Quick, easy seal replacement with the pump in place is made possible, thanks to a cartridge seal with a truly front-loading, self-setting design. This maximizes process uptime and minimizes maintenance costs. An optional seal service kit program adds maintenance flexibility and cuts operating costs.

Robust Gearbox
A sturdy, all stainless steel gearbox with timing gears located between bearings, provides an optimized bearing span giving balanced loading of the shaft assembly, reducing vibration and noise, increasing component life and reliability. Oil chamber design provides for enhanced bearing and gear lubrication, minimizing gearbox running temperature, increasing bearing life.

Simplified Timing
Easy access to timing gears whilst pump is in position, simplifies process of screw retiming without the need to drain gearbox oil or remove coupling and motor.

Operational Safety

Hygienic Design
A clean, external stainless steel finish with profiled elastomers and mechanical seals fully surrounded by product. Designed for maximum cleanability utilizing FDA conforming materials, the pump is both EHEDG and 3A certified.

Safer Environment
The combination of optimized gearbox design and excellent hydraulic performance provides for quiet pump operation reducing noise emissions to a minimum. Furthermore, running temperature is minimized, increasing workplace safety. An optional ATEX version allows use in hazardous zones.
