Accuracy and Efficiency: Pouch Packaging of the Future

Consumer trends are demanding more options in terms of product type, size and package.

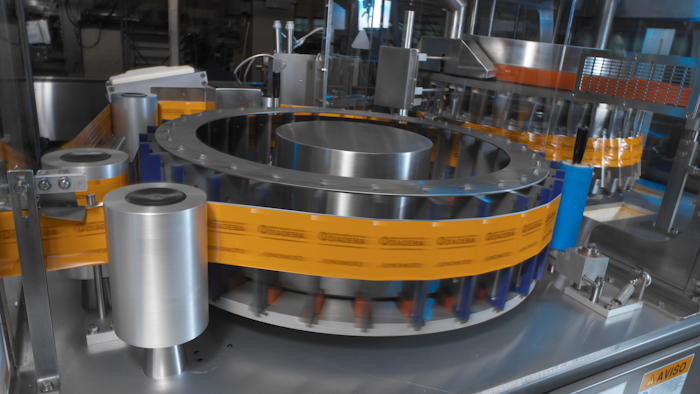

Picture 018

As four in 10 Americans say that they are buying more pre-packaged foods[1], manufacturers are experiencing never-before-seen opportunities, but they need to act quickly. Consumers are expecting more variety and excitement in their foods, as while quarantined at home, they began cooking more often.

Not only do manufacturers need to offer, and efficiently pack, a wider range of SKUs more quickly ––regardless if consumer packaged goods (CPGs) are working with co-packers or investing in their own packaging equipment –– but they also need to ensure that they are delivering a high-quality, reliable product that protects consumer health and brand reputation.

These requirements are particularly important for dry goods packed in a pouch format, in which inconsistencies are often noticeable for the customer, or can in some cases have severe consequences.

While not potentially life-threatening, food products do contain risks around inconsistent dosage. Brands that miss the mark for consistency across one sachet to the next may be subject to consumer dissatisfaction and distrust.

Despite these challenges, pouch products have often traditionally used a pre-mixed filling method, in which batches of ingredients are combined into one standing mixture prior to moving into the pouch. While this may minimize the number of entry points of product and pulls from one joint source, the approach creates numerous opportunities for inconsistencies and inefficiencies.

With over-the-counter pharmaceutical formulations, the pouch contains a sugar mixture with a very small dose of an active drug ingredient – granules that are difficult to control and that could become lost in pre-mixed batches placed into large hoppers. This is also true for certain food applications, as the differing weights of ingredients in a pre-mixed batch of oatmeal (i.e. nuts or dried fruits) can cause some pieces to float near the top of batches while others settle near the bottom, influencing the way the product filters down and disperses into each individual sachet.

The potential result is a medicinal tea that is missing enough of the active drug to help alleviate symptoms or an oatmeal pouch that feels stingy on advertised toppings.

A Better Way to Pack

Inconsistencies in the final product come with a plethora of risks, ranging from health risks for consumers due to an allergy or wrongly dosed medicine to reputational risks for food brands if consumers share their unhappiness or poor experience with family, friends or on social media. As a result, leading packaging engineers developed a new generation of high-speed, horizontal form, fill and seal (HFFS) machines for a variety of pouch styles that offer a wide range of feeding systems for individual or multi-component blends.

Equipped with an online blending feature that combines up to seven product feeds, and doses the different ingredients directly into the filler, the machinery promotes greater control over individual ingredient dosage and eliminates the need for pre-mixed batches—a less-consistent, time-consuming process. The result is greater operational efficiency and a more reliable product for consumers.

For greater protection, pouch packaging equipment must also be designed with hygiene in mind. Cleanability allows for greater versatility, as machinery can facilitate safer, quicker changeovers and simplified sanitization processes between product types. With this in mind, the latest packaging solutions allow changeover to occur at almost just the touch of a button. Any combination of feeders can be set up via an easy-to-use human-machine-interface (HMI).

These more advanced systems also provide feedback on ingredient density and weight, determining flow rate as the belts transporting product continuously weigh and adapt distribution, resulting in less downtime and less product waste over time. In addition, the accumulator further allows the machine to continue running after minor stops, improving overall equipment effectiveness (OEE) along the manufacturing line.

Ultimately, these design elements save considerable costs without compromising on safety or packaging speed. In fact, the system’s unique integration with a cartoner can pack approximately 500-600 boxes per minute in a single-pouch, multiple-ingredient configuration.

Aligned to Changing Supply Chains

Removing the need to use the pre-mixed batch method also means manufacturers can finally package goods on demand, rather than having to mix major amounts of product in advance and face various logistical issues or concerns of product shelf life throughout storage. The more simplified supply chain also allows for critical flexibility around limited-edition and seasonal offerings that place pressure on CPGs to debut new products quickly. In this sense, online blending allows manufacturers to greatly enhance speed to market, helping to build and diversify product portfolios.

In addition, manufacturers can finally enable constant flow of varied shapes, sizes and textures without disturbing the seal and enabling a solid, safe close of the pouch each time. Avoiding failed or inconsistent seals helps to mitigate risk of food quality issues and associated downtime. To streamline the packaging process even further, improving count flexibility is key.

New and innovative knife features unique to more advanced machinery can also allow the manufacturer to switch between multiple counts, ranging from a six-count option up to a 12-count option, at the push of a button. These adjustments can be implemented without physical knife changes at high speeds—a benefit for greater output and operational safety.

Increased flexibility is a no-brainer for countless food applications. Manufacturers can, for example, now pack a larger variety of side dishes while ensuring consumers are repeatedly satisfied with the trusted consistency of their products. With the latest generation of machines, such as the Pouch King®, and by working with the right team of design and manufacturing packaging machinery experts, manufacturers can better ensure that production line setup enables rather than restrains output.


R.A Jones has more than 40 years of engineering pouching equipment globally with over 400 machines installed. To learn more visit www.rajones.com.


[1] FoodInsight.org (2020): https://foodinsight.org/wp-content/uploads/2020/04/COVID-19-Consumer-Research.April2020.pdf, p.8.
