Agitated Vessels

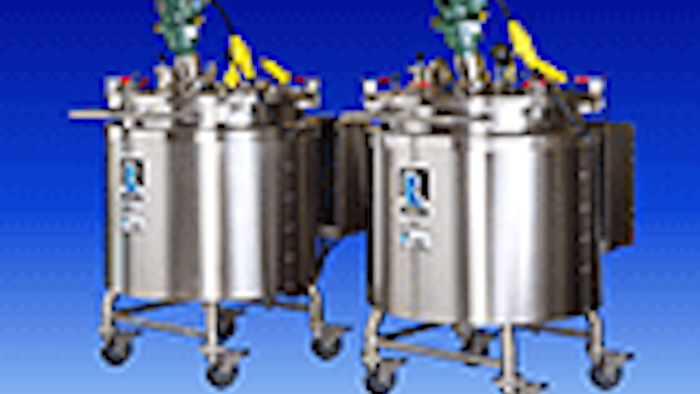

Shown are portable 50-gallon Agitated Vessels Model VSL-50 fabricated in stainless steel 316 and designed for atmospheric operation.

title
title

Company introduces custom agitated veseels with silicone heating blanket for processes that cannot accomodate the conventional jacket which requires a heating fluid. Shown are portable 50-gallon Agitated Vessels Model VSL-50 fabricated in stainless steel 316 and designed for atmospheric operation. Silicone heating blankets and temperature sensors are installed on the sidewalls and dished bottom of the vessel. Bolt-on insulation and sheathing are also provided. Suitable for low viscosity solutions and suspensions, the vessel’s propeller agitator is driven by a ½ HP inverter-duty motor and controlled from a NEMA 4X stainless steel panel that includes an E-Stop mushroom head, cycle timer, digital heater temperature comptrollers and a high temperature alarm. The vessels are highly customizable and can be supplied with any number of sight/charge ports and process connections. The cover of this particular VSL-50 has dedicated tri-clamp ports for an RTD temperature probe and a rotating CIP spray ball. Finished product is discharged through a clean design ball valve 12” above the floor. Casters on the vessel legs are provided for easy movement.

Charles Ross & Son Company www.mixers.com
