Rotary Drum Screen

The new, compact Rotary Drum Screen removes solids from industrial waste streams, and recovers solid product from process streams, at rates from 600 to 2,790 gal/min without blinding or clogging the screen.

title
title

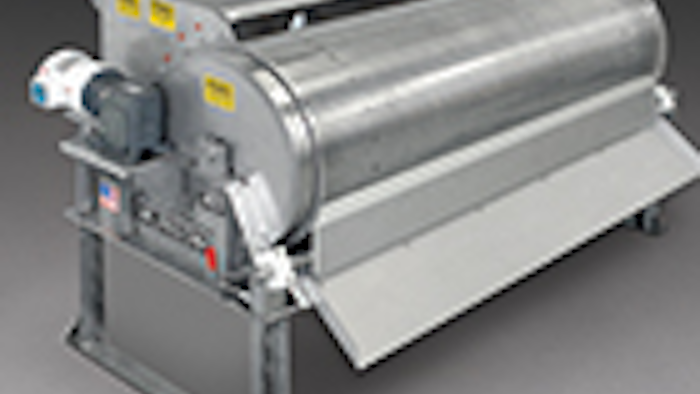

The new, compact Rotary Drum Screen removes solids from industrial waste streams, and recovers solid product from process streams, at rates from 600 to 2,790 gal/min without blinding or clogging the screen. The product also reduces floor space and headroom requirements compared with non-rotating equipment of equivalent capacity. The stainless steel unit, Model 24-RDS-72, is comprised of a 24. in diameter x 72 in. long cylinder with durable wedge-wire screening, a variable speed drive, head box, discharge chute and support structure. Solids-laden effluent discharges from the head box and overflows a weir, flooding the entire length of the variable speed, rotating wedgewire drum screen. Solids deposited on the screen gravity-drain through slotted apertures to moisture levels in the 20 percent range before being removed by a doctor blade and chute. Liquid passing through the screen falls onto an internal baffle that concentrates the flow, forming a full-length water knife that impinges against the underside of the screen, dislodging any solids trapped in apertures, even when handling oily, greasy, fibrous or resinous matter.

Typical applications include: separation of various solids and sludges from municipal and industrial wastewater, food processors, pulp and paper production and rendering processes; removable of extruded pellets from cooling baths; and separation of debris from any variety of plant and equipment cleaning processes.

Munson Machinery Company, Inc. www.munsonmachinery.com
