PSENmlock Mini Useful for Space-Critical Applications

The sensor offers benefits for the packaging, pharmaceutical and food and beverage sectors.

Plz 131
Pilz

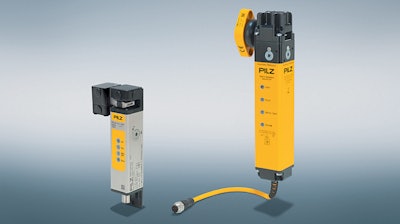

Pilz (Canton, MI) announced the addition of a new sensor, PSENmlock mini for space-critical applications, to its portfolio of safety locking devices. The sensor offers benefits for the packaging and pharmaceutical industry and for the food and beverage sectors. A high level of manipulation protection and added flexibility for increased productivity is inherent in this safety locking device.

Features:

  • Ideal for space-critical applications, such as flaps or covers
  • Wide range of mounting options
  • Size of 30 x 30 x 159 mm
  • Manages safeguards locking device for personnel protection applications up to PL d, Category 3 (EN ISO 13849-1)
  • 1950 N holding force FZH
  • Able to be attached using two screws
  • Able to be installed inside or outside safeguard
  • Able to be attached from right, left and front
  • Dual-channel operation of the solenoid and bistable guard locking principle
  • Reduced energy consumption
  • OSSD outputs that detect wiring errors and immediately switch machine to safe state in event of fault
  • RFID safety switch with protection type IP 67 that offers manipulation protection
  • Freely selectable coding: coded, fully coded or uniquely coded
  • Auxiliary release integrated on two sides
  • Able to be connected in series up to PL d, Cat. 3

pilz.us
