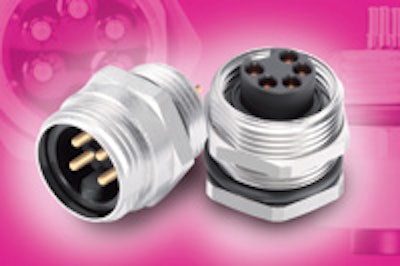

[[{"type":"media","view_mode":"media_large","fid":"127435","attributes":{"class":"media-image","style":"float: right; margin: 10px;","typeof":"foaf:Image"}}]]Series 820 and 870 connector families have added 7/8" panel-mount connectors with dip solder contacts. The units can be mounted to a PCB board and are suited for power supplies, Fieldbus and Ethernet applications. The receptacles are available in both male and female versions with 2+PE, 4 and 4+PE gold-plated contacts. Front- and rear-mountable positions allow for the receptacles to be mounted from the back or front of a panel. All versions have UL approval, and an IP67 rating ensures units are protected in harsh environments.
Binder-USA, www.binder-usa.com
